Short answer: A new in-ground sprinkler system costs about $5,200 for 4 zones and $7,375 for 6 zones, the medians of nine U.S. installers’ published prices (October 2026). Most charge $956 to $1,250 per zone. Where quoted separately, the backflow preventer, smart controller and city permit add roughly $1,150 to $1,900.
$1,150 median published price per zone (9 installers in 8 states; middle half $956–$1,250)
$5,750–$8,308 typical 6-zone system, installed (middle half; median $7,375)
$35–$175 city permit for a home sprinkler system (11 official fee schedules)
15,000 gal yearly water a WaterSense smart controller can save an average home (EPA WaterSense)
Sprinkler system cost is mostly a count of zones. Most installers that publish prices charge by the zone or quote a band of zone counts, so this guide prices the system the way they do. In October 2026 we compiled the published installation prices of 15 irrigation and landscape companies in 12 states, nine of which publish enough detail to price a system by zone count. We then added manufacturer list prices from Rain Bird and Toro, permit fees from 11 city and county fee schedules, backflow rules from state codes, licensing fees from five state boards, smart-controller rebates from nine water utilities, and USDA cost data for farm-scale drip and sprinkler systems.
Every number links to where it came from, and the full table is downloadable. The arithmetic behind each range is in the method box near the end. Already have a system that is leaking or dead? That is a different bill; see our sprinkler repair price guide. For other outdoor projects, start at our cost guides.
Sprinkler system cost by number of zones
This is the table most people are looking for. For each zone count we applied each installer’s own published terms (its per-zone rate, its zone-count band, or its itemized calculator) and took the midpoint for that company. “Median” is the middle company; “typical range” is the middle half of companies; “full range” runs from the cheapest published low to the dearest published high.
| System size | Median installed price | Typical range (middle half) | Full published range | Price lists |
|---|---|---|---|---|
| 3 zones | $4,215 | $3,600–$4,875 | $2,400–$5,575 | 7 |
| 4 zones | $5,200 | $3,875–$5,845 | $3,000–$7,400 | 9 |
| 5 zones | $6,450 | $5,250–$7,207 | $3,000–$9,250 | 8 |
| 6 zones | $7,375 | $5,750–$8,308 | $4,200–$11,100 | 9 |
| 7 zones | $8,400 | $6,250–$9,539 | $4,500–$12,950 | 9 |
| 8 zones | $9,600 | $6,750–$10,770 | $4,500–$14,800 | 9 |
| 10 zones | $12,000 | $8,375–$13,232 | $4,500–$18,500 | 9 |
| 12 zones | $14,938 | $12,306–$15,836 | $5,500–$22,200 | 8 |
Per-zone rates are the middle half ($956 to $1,250) and full range ($600 to $1,850) of nine installers' published prices, Oct. 2026. Some installers already include the controller, backflow and permit; untick those if your quote does. Bare-dirt factor from Midwest Sprinkler's $1,000 vs $1,300 per zone. Pre-tax estimate; see How we built these numbers.
Read the spread before you read the median. At 6 zones the published prices run from $4,200 (a St. Petersburg, Florida installer’s worked example) to $11,100 (the top of a Boise-area per-zone rate). Two things explain most of that gap. The first is scope: Irrigation EMI’s Massachusetts bands include design, controller, backflow, rain sensor, permit and startup, while Dallas Dream Yard prices its zones and then adds about $675 for a smart controller and about $850 for the backflow preventer Texas requires. The second is market: the per-zone shops in Idaho, Nebraska and North Carolina all post $1,300 or more a zone.
- 25th percentile
- Median
- 75th percentile
Source: Green Industry Report calculation from 9 installers' published terms, Oct. 2026 Inclusions vary by installer; see the method box.
Show the numbers
| 25th percentile | Median | 75th percentile | |
|---|---|---|---|
| 3 zones | $3,600 | $4,215 | $4,875 |
| 4 zones | $3,875 | $5,200 | $5,845 |
| 5 zones | $5,250 | $6,450 | $7,207 |
| 6 zones | $5,750 | $7,375 | $8,308 |
| 7 zones | $6,250 | $8,400 | $9,539 |
| 8 zones | $6,750 | $9,600 | $10,770 |
| 10 zones | $8,375 | $12,000 | $13,232 |
| 12 zones | $12,306 | $14,938 | $15,836 |
How much does a 4-zone, 5-zone or 7-zone sprinkler system cost?
A 4-zone system, enough for a small lot or the front yard of a larger one, has a median published price of $5,200 and a typical range of $3,875 to $5,845. A 5-zone system runs a median of $6,450. A 7-zone system, about what a quarter-acre lot needs when the beds get their own zones, has a median of $8,400 and a typical range of $6,250 to $9,539.
How much does a 10-zone sprinkler system cost?
Ten zones is a large suburban yard or a half-acre lot. The median is $12,000, with the middle half of price lists between $8,375 and $13,232. Bundled-price shops flatten out at this size (Hound Dog’s band tops out at $6,000 for 7 to 10 zones), while strict per-zone shops keep climbing, so get at least one quote from each kind.
How much does it cost to add a zone to a sprinkler system?
On a new system, each extra zone costs what a zone costs on that price list: $975 to $1,350 at Dallas Dream Yard, $1,300 at Midwest Sprinkler in Omaha. Adding a zone to an existing system is cheaper because the controller, backflow and main line are already there: Elite Sprinkler Services in Katy, Texas, lists “Add a zone” at $325 (price list), and Elite Sprinkler Systems in Metro Detroit quotes $600 a zone, spray or drip (installation guide).
What installers actually publish
Most sprinkler companies say “call for a quote.” These 14 do not (a 15th, in Katy, Texas, posts add-on prices only). We kept only prices a company posts on its own website for its own work, and left out cost-guide sites, lead-generation marketplaces, social media posts and pages that only repeat national averages. One Long Island package price was dropped because the promotion had expired.
Swipe the table sideways to see every column.
| Installer | Published price | What it covers | Date on page |
|---|---|---|---|
| Beeline Sprinkler Repair (Nampa / Boise area, ID) | $1,400 to $1,850 per zone; 3 to 4 zone Boise yards $4,200 to $7,400 | Heads, valves, pipe, labor; controller and backflow device listed as included | None shown |
| Midwest Sprinkler Service & Sales (Omaha, NE) | About $1,300 per zone; about $1,000 per zone on bare dirt before sod | Pipe, valves, heads, zone wiring. Controller $180 to $450 extra; backflow installed by a licensed plumber as a separate job | Prices current as of 2026 |
| Heffner Landscaping (Southern Pines, NC) | $1,300 per zone; most properties 6 to 7 zones | Digital timer, all piping, heads. Asks 50 percent down | None shown |
| Lawn Theory (Northern Virginia, VA) | About $1,200 per zone; from $3,500 (3 to 4 zones), $5,500 (5 to 7 zones), $7,500 (8+ zones) | Controller in every tier; Wi-Fi controller and rain sensor from the 5 to 7 zone tier; drip in the 8+ tier. Starting prices | None shown |
| Dallas Dream Yard (Dallas-Fort Worth, TX) | $975 to $1,350 per zone; smart controller about $675; backflow preventer about $850 | Zone work. Permit fee set by the city | Aug. 7, 2026 |
| Better Earth (Dallas-Fort Worth, TX) | 8 zones: zone work $7,000 to $8,600; connection and backflow $700 to $1,000; design, permit and city review $450 to $900; total $8,000 to $10,500 | Itemized. Planning range, not a quote | None shown |
| Irrigation EMI (Billerica, MA) | 4 zones $3,000 to $4,500; 6 to 8 zones $4,500 to $6,500; 8 to 12 zones $5,500 to $8,000 | Design, trenching, pipe, heads, valves, controller, backflow, rain sensor, permit, startup. Smart controller adds $200 to $500; permits $50 to $100 | June 3, 2026 |
| Hound Dog Landscaping (St. Petersburg, FL) | 4 to 5 zones $3,000 to $4,000; 7 to 10 zones $4,500 to $6,000; 6-zone example job $4,200 | Trenching, pipe, heads, valves, controller, rain sensor, programming | None shown |
| Storm Sprinklers (Orem / Utah County, UT) | $800 to $1,200 per zone; about $7,000 average professional install; parts for a complete system $2,000 to $3,000 | Guide table: zones only. City (culinary) water connection adds about $2,000 versus secondary water | Guide updated Feb. 8, 2026 |
| Atlanta Irrigation Company (Atlanta, GA) | Full system from $3,500; backflow from $800; standard controller from $425; smart Wi-Fi controller from $575 | Not itemized. No zone count given | Updated October 2026 |
| Elite Sprinkler Systems (Metro Detroit, MI) | $2,500 to $6,000 full residential install; added zone $600 (spray or drip); drip retrofit $600 to $2,000 | Not itemized. No per-zone rate for new systems | Aug. 11, 2026 |
| Cape May County Sod (Cape May County, NJ) | $2,850 to $3,950 fully installed | Not itemized. Front lawn only at the low end | 2026 in page title |
| Incline Landscaping (Colorado Springs, CO) | Basic system starts at $2,500 to $4,500; packages with new sod $5K, $11K, $19K+ | Permits handled. Package prices include sod | None shown |
| Texas Best Irrigation & Landscaping (Houston, TX) | Quarter-acre lot $1,800 to $3,800 | Not itemized. No date; may be out of date | None shown |
| Installer | Per zone, low | Per zone, high | Midpoint |
|---|---|---|---|
| Hound Dog Landscaping (FL) | $600 | $1,000 | $800 |
| Irrigation EMI (MA) | $750 | $1,125 | $938 |
| Better Earth (TX) | $875 | $1,075 | $975 |
| Storm Sprinklers (UT) | $800 | $1,200 | $1,000 |
| Midwest Sprinkler Service & Sales (NE) | $1,000 | $1,300 | $1,150 |
| Dallas Dream Yard (TX) | $975 | $1,350 | $1,162 |
| Lawn Theory (VA) | $1,200 | $1,200 | $1,200 |
| Heffner Landscaping (NC) | $1,300 | $1,300 | $1,300 |
| Beeline Sprinkler Repair (ID) | $1,400 | $1,850 | $1,625 |
| Middle half of the nine midpoints | $956 | $1,250 | $1,150 (median) |
| Full published range | $600 | $1,850 | n/a |
The per-zone midpoints run from $800 (Hound Dog, derived from its zone bands) to $1,625 (Beeline). The median is $1,150. Two caveats apply. Bundled prices from Massachusetts, Florida and New Jersey installers sit at the bottom of the range partly because they quote whole systems for typical lots, which spreads the fixed costs (controller, backflow, main line) across the zones. And published prices are a floor for many companies: Lawn Theory’s tiers are “starting at” prices, and Better Earth calls its calculator a planning range, not a quote.
A per-head price, the other unit people search for, is rare on new-system price lists. None of the companies in our sample posts one for a new system. The only installer figure we found is an add-on: Elite Sprinkler Services charges from $125 to add a head to an existing zone (price list).

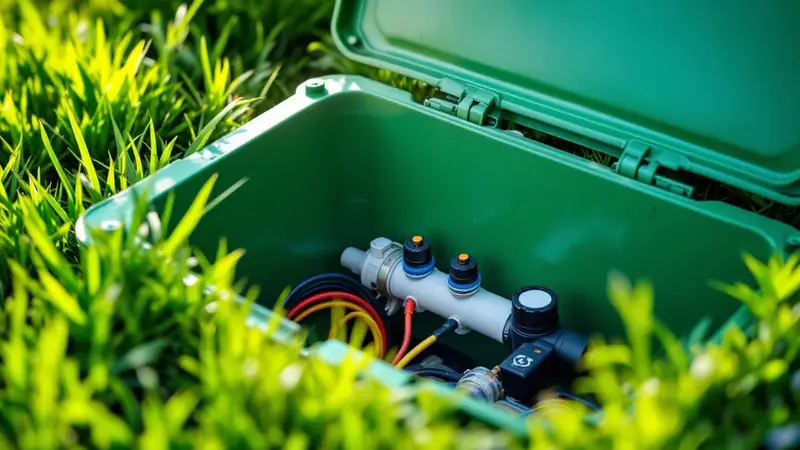

How many zones does a sprinkler system need?
Zone count drives the price, so it is worth checking before you compare quotes. A zone is the group of heads one valve runs at a time, and its size is capped by how much water your service line can deliver. Rain Bird’s Landscape Irrigation Design Manual gives the rule designers use: precipitation rate (inches per hour) = 96.3 × flow in gallons per minute ÷ area in square feet. Turn it around and you get the area one zone can cover.
Formula: square feet per zone
Area per zone (sq ft) = 96.3 × available flow (gpm) ÷ precipitation rate (in/hr).
Worked example: a home with 10 gpm available for irrigation (the flow used in the manual’s worked residential design) and spray heads applying 1.6 in/hr gets 96.3 × 10 ÷ 1.6 = about 600 sq ft per zone. The same 10 gpm through rotors or rotary nozzles at 0.6 in/hr covers 96.3 × 10 ÷ 0.6 = about 1,600 sq ft per zone.
Then: zones = irrigated area ÷ area per zone, rounded up, plus one zone for each separate bed, slope or shade area. The manual itself warns that a meter’s safe flow should not be exceeded (its rule of thumb is no more than 75 percent of the meter’s maximum safe flow), which is why a plumber or irrigator measures flow and pressure before design.
The precipitation rates in the example sit inside the ranges the manual publishes: fan sprays apply 1 to 4 inches per hour, while rotating sprinklers run “more in the 1/4 to 2 in/h range.” That is why rotors are the cheaper way to water a big open lawn: fewer zones, fewer valves, less wire. Sprays win in strips, small yards and beds where a rotor’s throw would hit the house.
| Irrigated area | All sprays, 10 gpm | All rotors, 10 gpm | All rotors, 15 gpm |
|---|---|---|---|
| 2,500 sq ft (small front or back lawn) | 5 | 2 | 2 |
| 5,000 sq ft | 9 | 4 | 3 |
| 7,500 sq ft | 13 | 5 | 4 |
| 10,000 sq ft | 17 | 7 | 5 |
| 1/4 acre (10,890 sq ft) | 19 | 7 | 5 |
| 1/2 acre (21,780 sq ft) | 37 | 14 | 10 |
| 1 acre (43,560 sq ft) | 73 | 28 | 19 |
Most suburban systems land between the columns: rotors on the open lawn, sprays along walks and in narrow side yards, one or two drip zones for beds. Measure only what you will water. On a 1/4-acre lot, the house, driveway and patio can take a large share of the 10,890 sq ft, so an irrigated area of 6,000 to 8,000 sq ft is common, and that usually means 5 to 8 zones in a mixed design.
Irrigation system cost by yard size: 1/4 acre, 1/2 acre and 1 acre
How much is a sprinkler system for 1/2 acre? A half-acre lot usually needs 8 to 12 zones once the house, drive and patio are taken out. At the median published prices that is about $9,600 for 8 zones and $14,938 for 12. The cheapest bundled quotes come in under half that; strict per-zone shops come in higher.
| Lot size | Typical irrigated area (assumption) | Zones (mixed design) | Estimated installed price |
|---|---|---|---|
| 1/4 acre (10,890 sq ft lot) | 6,000–8,000 sq ft | 5–8 | $6,450–$9,600 |
| 1/2 acre (21,780 sq ft lot) | 12,000–18,000 sq ft | 8–12 | $9,600–$14,938 |
| 1 acre (43,560 sq ft), mostly lawn | 30,000–40,000 sq ft | 13–17 (rotors) | $12,428–$21,250 plus add-ons |
Acre-plus lots change the economics in two ways. Rotors on big open turf cover far more area per zone, so the price per square foot falls. But the water supply becomes the constraint: a single residential meter may not deliver enough flow to run large rotor zones, and Storm Sprinklers in Utah notes that a city (culinary) water connection “adds about $2,000” compared with a secondary irrigation-water connection (Storm cost guide). On a large lot, ask for the flow test result before you compare quotes.
Per square foot, the median 7-zone price ($8,400) spread over 7,000 sq ft of irrigated lawn and beds works out to about $1.20 per sq ft, and the typical 7-zone range gives $0.89 to $1.36. Treat that as a cross-check, not a pricing unit: no installer in our sample prices new systems by the square foot except Storm’s online estimator.
Where the money goes: parts versus labor
Parts are the smaller share of a professionally installed system. The manufacturer list prices below are what an installer’s supplier quotes before trade discounts; homeowners buying online pay similar or slightly lower retail prices.
Swipe the table sideways to see every column.
| Component | Example model | Price | Source |
|---|---|---|---|
| 4-in. pop-up spray body | Rain Bird 1804 | $3.19 | Rain Bird 2025 list |
| Adjustable spray nozzle | Rain Bird 12VAN or 15VAN | $1.78 | Rain Bird 2025 list |
| Rotary nozzle (low precipitation rate) | Rain Bird R-VAN18 | $8.18 | Rain Bird 2025 list |
| 4-in. spray body | Toro 570Z-4P | $3.45 | Toro 2026 list |
| Gear-driven rotor, 4 in. | Rain Bird 5004PC | $19.33 | Rain Bird 2025 list |
| Gear-driven rotor, 5 in. | Toro T5P | $20.90 | Toro 2026 list |
| 1-in. electric zone valve | Rain Bird 100DV | $31.35 | Rain Bird 2025 list |
| 1-in. electric zone valve | Irritrol 2400T | $31.83 | Toro 2026 list |
| 10-in. round valve box | Rain Bird PVB10RND | $23.80 | Rain Bird 2025 list |
| Drip control zone kit (valve, filter, regulator) | Rain Bird XCZ100PRF | $90.31 | Rain Bird 2025 list |
| Inline drip tubing, 100 ft | Rain Bird XFD0612100 | $74.75 | Rain Bird 2025 list |
| Controller, 4 / 8 / 12 station | Rain Bird ESP-TM2 | $182.75 / $246.31 / $460.84 | Rain Bird 2025 list |
| Wi-Fi module for that controller | Rain Bird LNK2 | $185.54 | Rain Bird 2025 list |
| Smart Wi-Fi controller, 8 / 16 zone | Rachio 3 | $199.99 / $249.99 | Rachio store |
| Rain sensor | Rain Bird RSD-BEx | $44.10 | Rain Bird 2025 list |
| Wireless rain and freeze sensor | Rain Bird WR2RFC | $150.81 | Rain Bird 2025 list |
| 1-in. Class 200 PVC pipe | Sold in 4-ft cuts | $1.44 per ft | Sprinkler Warehouse |
| 18-gauge 7-conductor valve wire | 250-ft roll ($133.15) | $0.53 per ft | Sprinkler Warehouse |
Add it up and the heads, nozzles, valve and valve box for an eight-head spray zone list at about $95; a five-rotor zone lists at about $152. Pipe, fittings, swing joints and wire add more, and a controller, sensor and backflow preventer are one-time costs for the whole system. On any of the installer price lists in this guide, parts are a minority of the per-zone price. The rest is trenching or pulling pipe, tapping the main line, design, permits, travel, warranty and the contractor’s overhead.
What a DIY sprinkler system costs
Storm Sprinklers puts the parts for a complete northern Utah system at $2,000 to $3,000, including “pipe, fittings, valves, wiring, sprinkler heads, and a controller” (Storm cost guide). That is consistent with the list prices above: six zones of heads and valves, a controller, a few hundred feet of pipe and a roll of wire. The gap between that parts estimate and the {money(ZROWS[6][‘med’])} median 6-zone price, roughly {money(ZROWS[6][‘med’]-3000)} to {money(ZROWS[6][‘med’]-2000)}, is mostly labor, equipment and overhead, and that is what you save by doing it yourself.
The trade-offs are real. You still need the permit and, in most places, a licensed plumber or tester for the backflow preventer; Minnesota, for example, requires a licensed plumber to install the device (Minnesota Department of Labor and Industry). Texas lets owners install on their own homes without a license, but the system must still meet the state’s design standards (30 TAC 344.30(g)). Renting a trencher or pipe puller, calling 811 before digging and getting head-to-head coverage right are on you. A badly spaced system wastes the water you installed it to save.
Drip irrigation system cost
For beds, foundation plantings and narrow strips, drip replaces spray heads. On a home system it is just another zone with a different kit: Rain Bird lists a 1-in. drip control zone kit (valve, filter and pressure regulator) at $90.31 and 100 feet of inline drip tubing at $74.75 (Rain Bird 2025 price list). Installed, Elite Sprinkler Systems in Metro Detroit charges the same $600 for an added drip zone as for a spray zone, and $600 to $2,000 to retrofit drip into existing garden beds (installation guide). Lawn Theory in Northern Virginia includes drip for beds in its 8-zone-plus tier, which starts at $7,500, and Beeline in Idaho includes drip for beds where needed (Lawn Theory, Beeline).
To lay out that drip zone yourself, from the bucket test to emitter counts and dripline run lengths, see our guide to setting up a drip irrigation system.
Texas has a rule that pushes drip into narrow strips: new systems there may not use above-ground spray heads in landscapes less than 48 inches wide that border pavement (30 TAC 344.62). Expect a Texas installer to quote drip or bubblers for parkway strips and side yards.
Drip irrigation cost per acre (and other farm systems)
How much does 1 acre of drip irrigation cost? USDA’s Natural Resources Conservation Service estimates a typical installed cost of about $4,900 to $5,200 per acre for small drip systems (half-acre to 2-acre fields) and about $1,800 to $2,900 per acre for larger drip fields, excluding the well and pump. Those are NRCS’s fiscal 2025 typical-cost scenarios, the figures it uses to set conservation cost-share payments.
Swipe the table sideways to see every column.
| State | System (NRCS scenario) | Typical field | Typical installed cost | EQIP payment rate |
|---|---|---|---|---|
| CA | Drip, orchard or vineyard over 10 acres | 40 ac | $1,784 per acre | $1,337.80/ac |
| CA | Drip, orchard or vineyard 10 acres or less | 7 ac | $3,398 per acre | $2,548.55/ac |
| CA | Drip, small acreage (nursery, hoophouse) | 2 ac | $5,208 per acre | $3,905.88/ac |
| TX | Surface drip tape, 5 acres or less | 0.5 ac | $4,924 per acre | $3,693.16–$4,354.24/ac |
| TX | Surface drip tape, over 5 acres | 40 ac | $2,938 per acre | $2,203.19–$2,597.56/ac |
| FL | Surface drip tape, under 5 acres | 0.5 ac | $5,025 per acre | $3,768.97–$4,055.41/ac |
| TX | Subsurface drip (SDI) | 60 ac | $2,679 per acre | $2,009.38–$2,369.06/ac |
| ID | Subsurface drip (SDI) | 60 ac | $2,404 per acre | $1,802.95–$1,809.44/ac |
| FL | Microjet (citrus grid) | 60 ac | $3,762 per acre | $2,821.27–$3,035.69/ac |
| TX | Solid-set sprinkler | 10 ac | $5,692 per acre | $4,269.04–$5,033.20/ac |
| CA | Solid-set sprinkler | 10 ac | $6,082 per acre | $4,561.40/ac |
| ID | Center pivot under 600 ft | 25 ac | $2,310 per acre | $1,732.44–$1,738.68/ac |
| CO | Center pivot, 0 to 60 acres | 40 ac | $1,814 per acre | $1,360.67–$1,538.37/ac |
| CO | Center pivot, 101+ acres | 120 ac | $986 per acre | $739.17–$835.71/ac |
| ID | Center pivot 1,200 ft or longer | 147 ac | $849 per acre | $637.02–$639.31/ac |
Three patterns stand out. Size matters most: the same Idaho center pivot hardware costs $2,310 an acre on a 25-acre field and $849 an acre on 147 acres. System type is next: solid-set sprinklers are the most expensive at $5,700 to $6,100 an acre, while subsurface drip on 60-acre fields runs $2,400 to $2,700. And the cost-share is a ceiling, not a promise: federal rules cap EQIP payments at 75 percent of estimated cost, or 90 percent for historically underserved producers (7 CFR 1466.23), but Nebraska’s fiscal 2025 rate for subsurface drip is about half the scenario cost (Nebraska EQIP payment schedule).
Spray irrigation cost per acre on a farm means sprinklers rather than drip: $5,700 to $6,100 an acre for solid-set systems and roughly $850 to $2,300 an acre for center pivots, depending on field size, in the NRCS scenarios above. University studies land in the same zone. UC Davis puts double-line drip for a 2024 almond orchard at $1,800 an acre, materials and labor (UC Davis cost study), and Kansas State’s 2020 comparison put a center pivot at $712 and subsurface drip at $1,331 per irrigated acre on a 160-acre field (K-State Research and Extension).
For national context, U.S. farms spent $3.0 billion on irrigation equipment, facilities and improvements in 2023, an average of $176 per affected acre, and pumping energy averaged $61.95 per irrigated acre on well water and $56.56 on surface water (USDA NASS 2023 Irrigation and Water Management Survey, Tables 16 and 19).
Controller costs: standard timer versus smart controller
The controller is a one-time cost for the whole system. Rain Bird lists its ESP-TM2 controller at $182.75 for 4 stations, $246.31 for 8 and $460.84 for 12, and its LNK2 Wi-Fi module at $185.54 (Rain Bird 2025 price list). A Rachio 3 smart controller sells for $199.99 (8 zones) or $249.99 (16 zones) direct (Rachio). Installed, published prices are $425 to $525 for a Rachio at Elite Sprinkler Services in Texas, about $675 at Dallas Dream Yard, and from $575 at Atlanta Irrigation; Irrigation EMI says a smart controller adds $200 to $500 to a Massachusetts system.
The case for paying more is water. The EPA says replacing a clock-based controller with a WaterSense labeled one “can save an average home up to 15,000 gallons of water annually” (EPA WaterSense, Irrigation Controllers). Many utilities pay part of the cost:
| Program | Area | Rebate | Conditions |
|---|---|---|---|
| Southern Nevada Water Authority | Las Vegas Valley, NV | 50% of price, up to $100 | Residential coupon |
| SoCal Water$mart | Southern California, CA | From $80 per controller (under 1 acre); $35 per station above 1 acre | Member agencies may add more |
| Utah Water Savers | Utah, UT | Up to $100 | WaterSense labeled; apply within 60 days of purchase |
| Colorado Springs Utilities | Colorado Springs, CO | Free WaterSense controller | Qualified customers; Wi-Fi required |
| City of Scottsdale | Scottsdale, AZ | Cost, up to $250 | Deadline April 30, 2027 |
| Tampa Bay Water Wise | Tampa Bay member utilities, FL | Free install, or $250 rebate | None stated |
| Orlando Utilities Commission | Orlando, FL | 100% of cost, up to $200 | None stated |
| Toho Water Authority | Kissimmee, FL | $145 | In-ground systems |
| Austin Water | Austin, TX | Irrigation Upgrade rebate up to $1,000 | Broader than controllers |
Texas also requires a rain or moisture shut-off device, or similar technology, on every new automatically controlled system (30 TAC 344.62(j)), so a Texas quote should include one. Rain Bird’s RSD-BEx rain sensor lists at $44.10 and its wireless rain and freeze sensor at $150.81.
Backflow preventer and permit costs

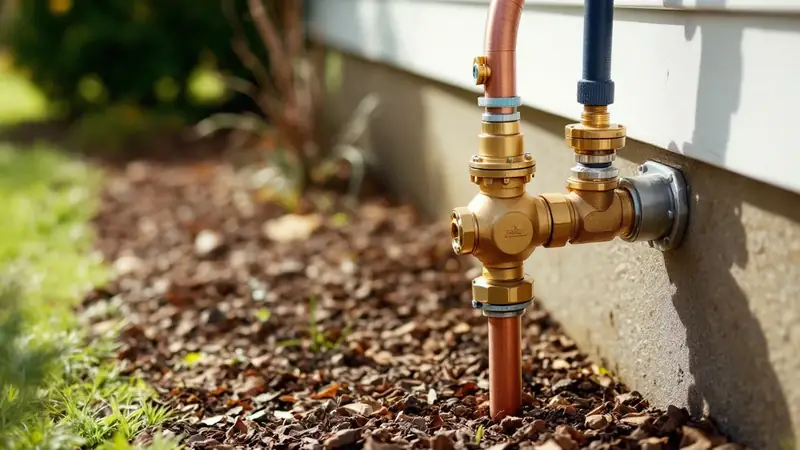

A sprinkler system connected to drinking water needs a backflow preventer so lawn water, fertilizer and soil cannot be siphoned back into the supply. Plumbing codes and water utilities decide which device you need, and the device type moves the price by a factor of five.
| Device (part only) | Retail price | Note |
|---|---|---|
| Pressure vacuum breaker (PVB), Febco 765, 3/4 in. | $153.95 | Sale price; regular $238.95 |
| Pressure vacuum breaker (PVB), Febco 765, 1 in. | $221.62 | Regular price |
| Double check assembly, Febco 850, 3/4 in. | $248.90 | Sale price; regular $410.99 |
| Double check assembly, Febco 850, 1 in. | $333.88 | Sale price; regular $465.99 |
| Reduced pressure zone (RPZ), Febco 825Y, 3/4 in. | $1,191.99 | Regular price |
| Reduced pressure zone (RPZ), Febco 825Y, 1 in. | $1,209.99 | Regular price |
Installed, published prices for the backflow connection run $700 to $1,000 for the tap and assembly at Better Earth in Dallas-Fort Worth, about $850 at Dallas Dream Yard, and from $800 at Atlanta Irrigation. Which device you get depends on where you live:
- Texas: a double check assembly is allowed only where there is no health hazard, the local authority does not prohibit it, and it is tested on installation; a pressure vacuum breaker must sit at least 12 inches above the highest downstream piping (30 TAC 344.50). If chemicals are injected, an RPZ or air gap is required, and on a property served by an on-site sewage system the irrigation counts as a health hazard and needs an RPZ (30 TAC 344.51). Test results go to the water utility within 10 business days (30 TAC 344.52).
- Utah: the adopted plumbing code allows an atmospheric vacuum breaker, a pressure vacuum breaker or an RPZ on lawn irrigation, not a double check (Ogden City, quoting IPC 608.17.5).
- Minnesota: a licensed plumber must install the device, and testable devices must be tested at installation and at least annually after (Minnesota DLI fact sheet).
- Florida (Jacksonville): JEA says the Florida Building Code has required backflow preventers on residential irrigation since 1990 and requires an RPZ for in-ground systems; JEA’s own testing program charges $35 a test (JEA requirements, JEA test program).
- North Carolina (Brunswick County): residential irrigation backflow tests are due every three years, and a county technician charges $36.75 (Brunswick County).
Sprinkler permit fees by city
| Jurisdiction | Residential fee | What the schedule says | Effective |
|---|---|---|---|
| Plano, TX | $175 | $165 permit + $10 day laborer fee per backflow device | Ord. 2025-11-4 |
| Arlington, TX | $125 | $125 new system on potable water (1- and 2-family); $225 on reclaimed water | Effective Oct. 1, 2026 |
| Dallas, TX | $120 | Irrigation permit fee $120 | Schedule dated 2024 |
| Fort Worth, TX | $120 | $120 each lawn sprinkler system | Effective Oct. 1, 2026 |
| San Antonio, TX | $57.50 + $57.50 | $57.50 base fee and $57.50 residential permit fee (listed separately); backflow inspection $57.50 + $17.25 per device under 1 in. | FY 2027 |
| Fredericksburg, TX | $100 | Irrigation permit $100, inspection included | Effective March 25, 2026 |
| Lino Lakes, MN | $75 | Lawn sprinkler/irrigation permit $75 | 2026 schedule |
| Lakeville, MN | $70 | Minimum residential plumbing permit (covers lawn sprinkler systems) $70; new RPZ valve $70 | 2026 schedule |
| Westminster, CO | $60 | Lawn irrigation sprinkler $60 | 2026 schedule |
| St. Johns County, FL | $50 | $16 issuance + $27 first 50 heads + $0.25 per extra head; $50 minimum | FY 2027 |
| Lake Mary, FL | $35 | Single-family residential $35 | Not stated |
Permits are cheap next to the system, $35 to $175 in this sample, but skipping one can cost more: Fort Worth says a permit and fee are required of homeowners and contractors whenever the system connects directly to the city water supply (Fort Worth irrigation requirements). Plano charges per backflow device, so a second connection doubles the fee. Better Earth’s itemized Dallas-Fort Worth calculator puts design, permit and city review together at $450 to $900, which tells you the paperwork costs the installer more than the fee itself.
Who is allowed to install a sprinkler system
Four states license landscape irrigation contractors specifically (Louisiana, New Jersey, North Carolina and Texas, per the Irrigation Association), and Connecticut licenses lawn sprinkler work under its plumbing trades. Elsewhere, cities and plumbing codes decide who can tap the water line. Check a contractor before you sign; our guide to checking a landscaper’s license shows how, and the state-by-state licensing table covers related trades.
| State | License | Fees | Exemptions / notes |
|---|---|---|---|
| Texas | TCEQ Licensed Irrigator / Irrigation Technician | $111 application; $111 renewal every 3 years; 24 hours of continuing education | Owners may install on their own home (344.30(g)) |
| New Jersey | Dept. of Community Affairs Landscape Irrigation Contractor certification | $45 application; $300 initial certification; $300 every two years | None listed |
| North Carolina | NC Irrigation Contractors’ Licensing Board | $100 application; $340 first exam | Own property, and jobs under $2,500 total (G.S. 89G-3) |
| Connecticut | Dept. of Consumer Protection J-3 / J-4 limited lawn sprinkler licenses | Renewal $150 contractor, $120 journeyperson (yearly) | Scope of work |
| Louisiana | Horticulture Commission landscape irrigation contractor | $114 exam; $100 license or renewal (rule); agency lists $125–$175 yearly license and inspection fees | LDAF |
Texas rules are the most detailed, and they double as a checklist for what a quote should include anywhere. A licensed irrigator must prepare a site-specific irrigation plan for every new system (344.61); heads must sit at least 4 inches from hardscape, the system needs a rain or moisture shut-off and an isolation valve between the meter and the backflow assembly, and pipe needs at least 6 inches of cover (344.62). At handover the owner gets a walk-through, a maintenance checklist and an as-built plan (344.63), and new installations come with a written contract and a written warranty covering materials and labor (344.71, 344.72).
This page is general information, not legal or plumbing advice. Permit, backflow and licensing rules vary by city and change often; confirm with your water utility and building department before you install.
Is a sprinkler system worth it?
Is it worth it to install a sprinkler system? It is worth it if you already water by hand or with hose-end sprinklers, and if the system is designed and scheduled well. It is not a water saver by default: the EPA says homes with clock-timer irrigation systems use about 50 percent more water outdoors than homes without them (EPA WaterSense, Sprinkler Spruce-up).
The water stakes are large. Outdoor use accounts for more than 30 percent of household water on average and as much as 60 percent in arid regions, and as much as 50 percent of outdoor water is lost to wind, evaporation and runoff from inefficient irrigation (EPA WaterSense statistics). A household with an automatic system that is not maintained can waste up to 25,000 gallons a year. A smart controller, matched-precipitation nozzles and a rain sensor are what turn the system from a convenience into a saving.
Do irrigation systems add value to your home? Some, not all of the cost. In the National Association of Realtors’ 2023 outdoor remodeling report, landscape professionals estimated $6,000 to install irrigation on a 5,000 sq ft lawn, and Realtors estimated it would add $5,000 to resale value, an 83 percent cost recovery. Homeowners who did the project gave it a 9.4 out of 10 “joy score” (NAR 2023 Remodeling Impact Report: Outdoor Features).
Pair the system with the lawn it waters. If you are laying new turf, install irrigation first, while the ground is bare: Midwest Sprinkler in Omaha charges about $1,000 a zone on bare dirt against $1,300 on an existing lawn. See our sod installation cost guide for the turf side of the budget and our landscaping cost overview for the rest of the yard.
What a sprinkler installation quote should include
- Zone count and head count by area, with spray, rotor and drip zones identified. Prices are per zone, so this is the number to compare.
- The flow and pressure test result the design was based on. It sets how many zones you need.
- Backflow device type and size, who installs it, and whether the first test and the test report to the utility are included.
- Controller model and whether it is WaterSense labeled, plus any rain or soil-moisture sensor.
- Permit and inspection: who pulls it and whether the fee is in the price.
- Pipe size and type, burial depth, and how they cross driveways and walks (boring or sleeves).
- Lawn restoration: pulled pipe leaves slits; trenching leaves strips. Who repairs them, and how.
- Warranty on parts and labor in writing, and the price of the first winterization or spring start-up where freezes occur.
Red flags: no zone count on the quote, a price with no backflow line in a state that requires one, no permit where the city requires it, and a large deposit with no schedule for the rest. Heffner Landscaping, for example, publishes a 50 percent deposit; ask what milestone releases the balance. If you run an irrigation business and are pricing installs, our guide to bidding landscaping jobs covers overhead and markup, and landscaper pay data shows what crews earn by state.
Why prices vary by region
Labor is the biggest input, and it varies. Landscaping and groundskeeping workers earn a median $18.82 an hour nationally, against $17.66 in Texas, $17.84 in Florida, $22.00 in Colorado and $22.41 in Minnesota (BLS OEWS, May 2025). Freeze depth matters too: northern systems need drain valves or blowouts, and backflow devices must be protected or removable. Residential irrigation is a niche inside landscaping: 12,060 establishments reported $2.77 billion in residential irrigation and sprinkler system construction revenue in 2022, about 2.4 percent of the industry’s receipts (Census Bureau, 2022 Economic Census product lines, NAICS 561730).
After installation, budget for yearly service. Fall blowouts, spring start-ups, broken heads and valve repairs are priced in our sprinkler repair cost guide.
Sprinkler system cost questions, answered
What’s the average cost of putting in a sprinkler system?
The median published price is about $7,375 for a 6-zone system and $5,200 for 4 zones, across nine installers that publish zone-based prices. The middle half of those price lists runs $5,750 to $8,308 for 6 zones.
How much does a 7-zone sprinkler system cost?
About $8,400 at the median of published installer prices, with a typical range of $6,250 to $9,539. Bundled-price installers in Florida and Massachusetts quote $4,500 to $6,500 for systems this size; strict per-zone shops charge $9,000 or more.
How much does a 6 zone sprinkler system cost?
The median published price is $7,375. Real examples: a 6-zone Florida job with smart controller, rain sensor and flow meter at $4,200, a 6-zone Massachusetts quote at $4,200, and per-zone shops in Nebraska and North Carolina at about $7,800 before extras.
How much is a sprinkler system for 1/2 acre?
Expect 8 to 12 zones for the irrigated part of a half-acre lot, which is about $9,600 to $14,938 at median published prices. A city-water connection, backflow preventer and smart controller can add $1,150 to $1,900 where they are priced separately.
How much does a backyard irrigation system cost?
A backyard alone is often 3 or 4 zones: a median of $4,215 for 3 zones and $5,200 for 4. Adding the backyard to an existing front-yard system is cheaper, because the controller and backflow are already in place; one Texas company lists an added zone at $325.
Is it expensive to get a sprinkler system installed?
It is one of the larger yard projects: most installers charge $956 to $1,250 per zone, so a typical lot runs $5,000 to $10,000. The parts are a small share; Rain Bird list prices for one spray zone’s heads, nozzles, valve and box total about $95.
How much does 1 acre of drip irrigation cost?
USDA NRCS puts the typical installed cost of small drip-tape systems at about $4,900 to $5,000 per acre (Texas and Florida fiscal 2025 scenarios), and larger drip fields at $1,800 to $2,900 per acre, not counting the well or pump.
Do irrigation systems add value to your home?
Some. In NAR’s 2023 outdoor features report, Realtors estimated a $6,000 irrigation installation on a 5,000 sq ft lawn would add $5,000 at resale, an 83 percent cost recovery.
How we built these numbers
Installer prices. We searched for U.S. irrigation and landscape companies that post new-system installation prices on their own websites and kept the 14 with a usable published price, plus one company that posts add-on prices only, all checked on Oct. 18, 2026. We excluded cost-guide and lead-generation sites, social media, pages that only restate national averages, and one Long Island package whose promotion expired May 1, 2026. Nine companies publish a per-zone rate, an itemized calculator or zone-count bands; only those nine feed the zone-count table.
Zone-count prices. For each zone count N we applied each company’s published terms: per-zone shops at N × their rate (Midwest Sprinkler plus its $180 to $450 controller; Dallas Dream Yard plus its $675 controller and $850 backflow; Better Earth plus its $700 to $1,000 connection and $450 to $900 design and permit), and band-priced shops at the band that contains N (Hound Dog’s worked 6-zone example at 6). We took each company’s midpoint, then the median and middle half across companies. Example, 6 zones: Beeline 6 × $1,400 to $1,850 = $8,400 to $11,100 (midpoint $9,750); Heffner 6 × $1,300 = $7,800; and so on; the median of the nine midpoints is $7,375.
Per-zone rates. Where a company posts bands rather than a rate we divided: Irrigation EMI’s $3,000 to $4,500 for 4 zones gives $750 to $1,125; Hound Dog’s $3,000 to $4,000 for 4 to 5 zones gives $600 to $1,000; Better Earth’s $7,000 to $8,600 of zone work for 8 zones gives $875 to $1,075. The median of the nine midpoints is $1,150; the 25th to 75th percentile is $956 to $1,250.
Zones by yard size. Zone counts use the precipitation-rate formula in Rain Bird’s design manual with 10 to 15 gpm available and 1.6 in/hr (sprays) or 0.6 in/hr (rotors). The irrigated areas for each lot size are illustrative assumptions, not measurements.
Parts, permits, licensing, rebates and farm costs come straight from the manufacturer price lists, fee schedules, state rules, utility pages and USDA documents linked in each table. NRCS figures are scenario “typical” installed costs, not bids. All prices are pre-tax and in current dollars; none are our own job data.
Sources
- Beeline Sprinkler Repair (Nampa, Idaho), Sprinkler Installation, Current pricing. Accessed October 2026.
- Beeline Sprinkler Repair, Boise Sprinkler Installation, Current pricing. Accessed October 2026.
- Midwest Sprinkler Service & Sales (Omaha, Neb.), Sprinkler system cost in Omaha, Prices current as of 2026. Accessed October 2026.
- Heffner Landscaping (Southern Pines, N.C.), Irrigation, Current pricing. Accessed October 2026.
- Lawn Theory (Northern Virginia), Irrigation & Sprinkler Systems, Current pricing. Accessed October 2026.
- Dallas Dream Yard (Texas), Sprinkler system cost in North Texas, Aug. 7, 2026. Accessed October 2026.
- Better Earth (Dallas-Fort Worth), Water cost calculator, Current calculator. Accessed October 2026.
- Irrigation EMI (Billerica, Mass.), Irrigation system installation cost in Massachusetts, June 3, 2026. Accessed October 2026.
- Hound Dog Landscaping (St. Petersburg, Fla.), Irrigation Installation, Current pricing. Accessed October 2026.
- Storm Sprinklers (Orem, Utah), Utah lawn sprinkler cost guide, Updated Feb. 8, 2026. Accessed October 2026.
- Atlanta Irrigation Company, Pricing, Updated October 2026. Accessed October 2026.
- Elite Sprinkler Systems (Metro Detroit), Sprinkler system installation in Metro Detroit, Aug. 11, 2026. Accessed October 2026.
- Cape May County Sod (N.J.), Sprinkler system cost, 2026. Accessed October 2026.
- Incline Landscaping (Colorado Springs, Colo.), Irrigation Installation, Current pricing. Accessed October 2026.
- Texas Best Irrigation & Landscaping (Houston), Pricing, Undated. Accessed October 2026.
- Elite Sprinkler Services (Katy, Texas), Pricing, Current pricing. Accessed October 2026.
- Rain Bird Corporation, Landscape Irrigation Price List 2025, Effective May 19, 2025. Accessed October 2026.
- Rain Bird Corporation, Landscape Irrigation Design Manual, Design reference. Accessed October 2026.
- The Toro Company, Toro and Irritrol product specification price list, Effective Jan. 19, 2026. Accessed October 2026.
- Rachio, Rachio 3 Smart Sprinkler Controller, Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, 1 in. Class 200 PVC pipe, Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, 18 AWG 7-conductor sprinkler wire, Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, Pressure vacuum breaker (PVB), Febco 765, 3/4 in., Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, Pressure vacuum breaker (PVB), Febco 765, 1 in., Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, Double check assembly, Febco 850, 3/4 in., Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, Double check assembly, Febco 850, 1 in., Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, Reduced pressure zone (RPZ), Febco 825Y, 3/4 in., Price checked Oct. 18, 2026. Accessed October 2026.
- Sprinkler Warehouse, Reduced pressure zone (RPZ), Febco 825Y, 1 in., Price checked Oct. 18, 2026. Accessed October 2026.
- City of Plano, Building Inspections fee schedule (Ord. 2025-11-4), Current schedule. Accessed October 2026.
- City of Arlington, Planning & Development Services fee schedule, Effective Oct. 1, 2026. Accessed October 2026.
- City of Dallas, Development Services permit fee schedule, 2024 schedule. Accessed October 2026.
- City of Fort Worth, Fee schedule (Ord. 26-28781), Effective Oct. 1, 2026. Accessed October 2026.
- City of Fort Worth, Irrigation system requirements, Current page. Accessed October 2026.
- City of San Antonio, FY 2027 Development Fee Schedule, FY 2027. Accessed October 2026.
- City of Fredericksburg, Fee Schedule, Effective March 25, 2026. Accessed October 2026.
- City of Lino Lakes, 2026 Fee Schedule, 2026. Accessed October 2026.
- City of Lakeville, 2026 Fee Schedule, 2026. Accessed October 2026.
- City of Westminster, Building Division fee schedule, 2026. Accessed October 2026.
- St. Johns County, Schedule of Fees and Services, FY 2027. Accessed October 2026.
- City of Lake Mary, Irrigation permit fees, Current page. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.30, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.50, Backflow Prevention Methods, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.51, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.52, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.61, Irrigation Plan, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.62, Minimum Design and Installation Requirements, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.63, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.71, Current rule. Accessed October 2026.
- Texas Administrative Code (via Cornell LII), 30 TAC 344.72, Current rule. Accessed October 2026.
- Texas Commission on Environmental Quality, Landscape Irrigator, Irrigation Technician and Inspector licenses, Current page. Accessed October 2026.
- Ogden City (quoting IPC 608.17.5), Backflow requirements packet, Current document. Accessed October 2026.
- Minnesota Department of Labor and Industry, Backflow devices fact sheet, 2020 Minnesota Plumbing Code. Accessed October 2026.
- JEA, Residential backflow requirements, Current page. Accessed October 2026.
- JEA, Backflow checkup program, Current page. Accessed October 2026.
- Brunswick County, N.C., Cross-connection / backflow prevention, Current page. Accessed October 2026.
- New Jersey Department of Community Affairs, Landscape Irrigation Contractors, Current page. Accessed October 2026.
- NC Irrigation Contractors’ Licensing Board, Licensing, Current page. Accessed October 2026.
- NC Irrigation Contractors’ Licensing Board, G.S. 89G-3, exemptions, Statute text. Accessed October 2026.
- Connecticut Department of Consumer Protection, Irrigation trades licensing, Current page. Accessed October 2026.
- Connecticut Department of Consumer Protection, Irrigation licenses and scope of work, Current page. Accessed October 2026.
- Louisiana Administrative Code (via Cornell LII), LAC 7:XXIX-109, fees, Current rule. Accessed October 2026.
- Louisiana Department of Agriculture and Forestry, Nurseries and landscaping, Current page. Accessed October 2026.
- Irrigation Association, Contractor state licensing, Current page. Accessed October 2026.
- Southern Nevada Water Authority, Smart controller rebate, Current program. Accessed October 2026.
- SoCal Water$mart, Smart controller rebate, Current program. Accessed October 2026.
- Utah Water Savers, Smart controller rebate, Current program. Accessed October 2026.
- Colorado Springs Utilities, Smart controller rebate, Current program. Accessed October 2026.
- City of Scottsdale, Smart controller rebate, Current program. Accessed October 2026.
- Tampa Bay Water Wise, Smart controller rebate, Current program. Accessed October 2026.
- Orlando Utilities Commission, Smart controller rebate, Current program. Accessed October 2026.
- Toho Water Authority, Smart controller rebate, Current program. Accessed October 2026.
- Austin Water, Smart controller rebate, Current program. Accessed October 2026.
- U.S. EPA WaterSense, Irrigation Controllers, Current page. Accessed October 2026.
- U.S. EPA WaterSense, Statistics and Facts, Current page. Accessed October 2026.
- U.S. EPA WaterSense, Sprinkler Spruce-up, Current page. Accessed October 2026.
- U.S. EPA WaterSense, Rebate Finder, Current page. Accessed October 2026.
- National Association of Realtors, 2023 Remodeling Impact Report: Outdoor Features, March 2023. Accessed October 2026.
- USDA NRCS, California FY2025 practice scenarios, FY2025. Accessed October 2026.
- USDA NRCS, Texas FY2025 practice scenarios, FY2025. Accessed October 2026.
- USDA NRCS, Colorado FY2025 practice scenarios, FY2025. Accessed October 2026.
- USDA NRCS, Florida FY2025 practice scenarios, FY2025. Accessed October 2026.
- USDA NRCS, Idaho FY2025 practice scenarios, FY2025. Accessed October 2026.
- USDA NRCS, Nebraska FY2025 EQIP payment schedule, FY2025. Accessed October 2026.
- eCFR, 7 CFR 1466.23, Payment rates, Current as of Oct. 2026. Accessed October 2026.
- USDA NASS, 2023 Irrigation and Water Management Survey, Released Oct. 31, 2024. Accessed October 2026.
- UC Davis Agricultural and Resource Economics, 2024 Sample Costs to Establish an Orchard and Produce Almonds, 2024. Accessed October 2026.
- K-State Research and Extension, Using the K-State Center Pivot Sprinkler and SDI Economic Comparison Spreadsheet, 2020. Accessed October 2026.
- U.S. Bureau of Labor Statistics, Occupational Employment and Wage Statistics, state estimates, May 2025. Accessed October 2026.
- U.S. Census Bureau, 2022 Economic Census, product lines by industry (NAICS 561730), 2022. Accessed October 2026.
